Product Description
With superior hardware solutions, this handheld device will bring you confidence to run multiple tasks in high speed
The H66 has undergone a series of rigorous and comprehensive reliability tests to ensure the great ruggedness of touch screen and cover, longer operating life of buttons, keyboard and interfaces, to survive wild handling in extreme conditions & demanding industrial environments in the field.
MILITARY GRADE RELIABILITY
Key Life Cycle Test
The key life cycle test will ensure the physical buttons’ durability and reliability.
Screen Toughness Test
The 5.5-inch touch panel endopts Corning Gorilla glass for enhancing durability.
IP Rating Test
The excellent capacity to survive from water splash, dust, static and extreme temperature will gives H66 strong adaptability to varying harsh industrial environment.
Product Specifications
Physical Characteristics
Dimensions: 6.3 x 2.99 x 0.61 / 0.67 in
Weight 287g (device with battery)
Battery: 4420 mAh removable battery, support QC3.0 and RTC
Standby: up to 490 hours Charging time: 2.5 hours Display: 5.5 inch high definition full display (18:9), IPS LTPS 1440*720
Touch Panel: Corning Gorilla Glass, multi-touch panel, gloves and wet hands
Interface:
1 slot for Nano SIM card
1 slot for Nano SIM or TF card
1 slot for USB Type-C, USB 3.1, OTG, extended thimble;
Data Capture & Communication
CPU: Qualcomm Octa-core Processor
Memory: 4GB RAM/64GB ROM
Camera: 13MP
Barcode scanner: Zebra SE4710 2D scan engine
1D Symbologies: UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies: PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet etc.
WLAN Support 802.11 a/b/g/n/ac/d/e/h/i/k/r, 2.4G/5G dual-band, IPV4, IPV6, 5G PA
WWAN: 4G: B2/B4/B5/B7/B12/B13/B17/B28A/B28B/B38
Bluetooth: BT 5.1
GNSS: GPS/AGPS, GLONASS
Developing Environment
Operating System: Android 13; GMS, Android Enterprise, Zero-Touch, FOTA, Soti MobiControl, SafeUEM supported
SDK: Software Development Kit
Language: Java
Tool: Eclipse / Android Studio
Reliability
Operating Temp. : -20 ℃ to +50 ℃
Storage Temp.: -40 ℃ to +70 ℃
Humidity: 5% RH – 95% RH non condensing
Drop Specification:
Multiple 1.8 m / 5.91 ft. drops (at least 20 times) to the concrete across the operating temperature range
Multiple 2.4 m / 7.87 ft. drops (at least 20 times) to the concrete after installed rubber bumper
Tumble Specification: 1000 x 0.5 m / 1.64 ft. falls at room temperature
Sealing: IP65 rated waterproof & dust-proof
WHAT YOU GET
Standard package:
The android handheld terminal * 1, 4420mAH/3.7V Li-ion Battery * 1, US standard wall charger * 1, USB cable * 1, Protective rubber bumper * 1, screws (to lock the rubber bumper) * 4, hand string * 1.
Optional accessories:
Snap-on trigger handle: B09WCTZTTF
Single-slot charging cradle: B0CHS1GJ75
4-slots charging cradle: B0BYYQW2PD
Spare battery: please write us
Industrial Leading Performance – This new generation android handheld terminal is developped based on latest Android 11 OS, equipped with a powerful Qualcomm Octa-core CPU, 5.5-inch big touch screen & a 4420mAH removeable battery. With higher compatibility, stability & superior hardware platform, the device brings outstanding operating experience in enterprise mobility applications, as an essential production tool.

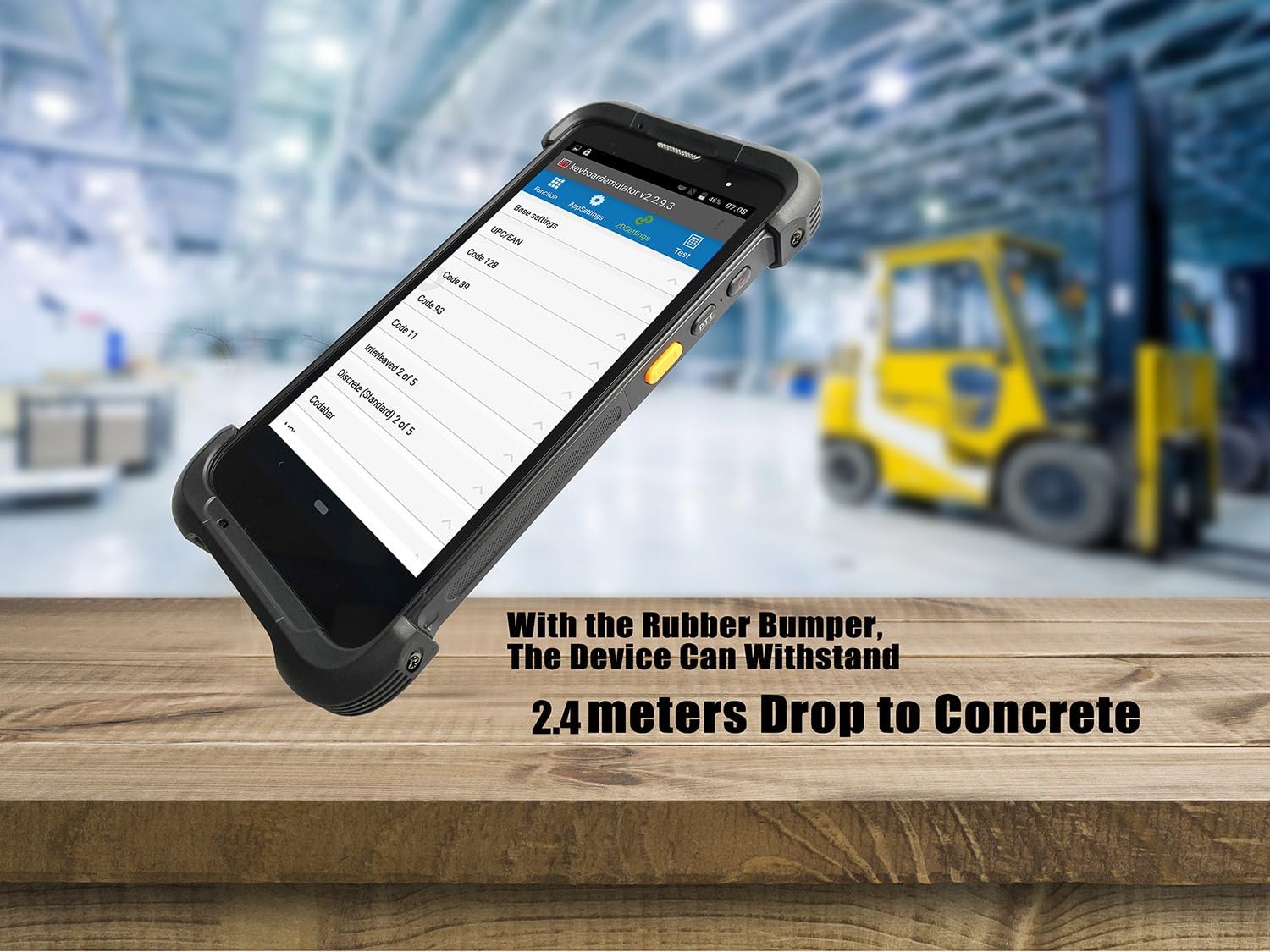

More Durability — With ruggedized design and protective rubber bumper, this mobile device can withstand 2.4 m / 7.87 ft. drops (at least 20 times) to the concrete. And its IP65 rated sealing can handle tasks in the rain, dirt, mud, sand & water. Perfect for tough working conditions that demand the most from their tools.
Enhanced Barcode Capturing — This handheld android scanner integrates Zebra OEM 2D scan engine. Can respond to any 1D & 2D QR barcodes fastly & accurately. With outstanding experience in barcode data capture especially on damaged or broken barcodes, the device is ideal for intensive scan environment. With the preinstalled Keyboard Emulator, you can easily set scan modes (trigger on press, continuous scan etc.). And you can set barcode output formats, add prefix/suffix/check digits conveniently.
Upgraded WIFI stability & Global 4G bands — The latest Wi-Fi 6 technology of the device provides seamless switch between access points, ensuring devices continuously connected to Wi-Fi station without worrying data losing. And the integrated global bands 4G module allows anywhere, anytime connection indoor or outdoor. This will highly improve field workforce efficiency and reduce enterprise operational cost.
What you will get – The package comes with: 1 * handheld PDA scanner, 1 * rubber bumper (& screws), 1 * wall charger, 1* battery, 1* hand string. 18-months’ manufacturer warranty.
